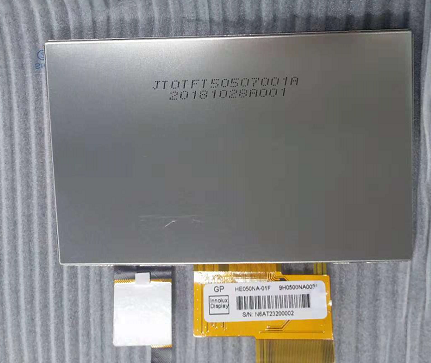

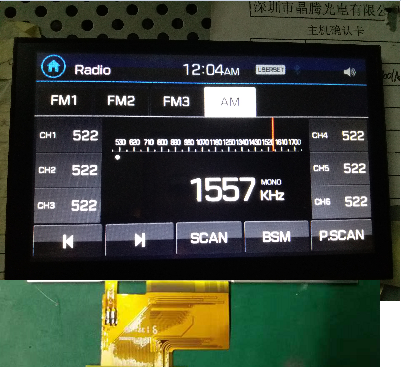

1. LCD size 5.0 inch(Diagonal)
2. Driver element :a-Si TFT active matrix
3. Resolution: 800×3(RGB)×480
4. Display mode:Normally White,Transmissiv
5. Dot pitch: 0.045(W) ×0.135(H) mm
6. Active area: 108.0(W)×64.8(H) mm
7. Panel size: 115.6(W)×74.38(H)×1.43(D) mm
8. Surface treatment :Anti-Glare
9. Color arrangement: RGB-stripe
10. Interface: Digital
11. View direction(Gray Inversion): 6 O’Clock
12. Panel Power consumption: 0.223 W(Typ.)
彩色显示
TFT
