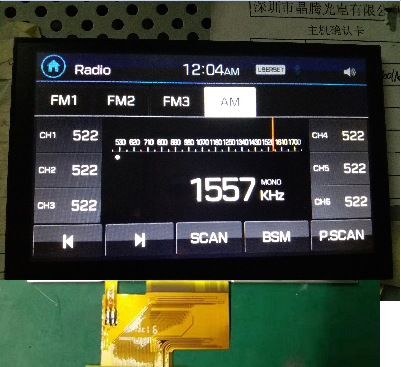

Model：JTOTFT50507001A
Size：5inch
Date：2018-10-29
Visits： 1066

Resolution: 800×3(RGB)×480
  • Display mode:Normally White,Transmissiv
  • Dot pitch: 0.045(W) ×0.135(H) mm
  • Active area: 108.0(W)×64.8(H) mm
  •  Panel size: 115.6(W)×74.38(H)×1.43(D) mm
  • Surface treatment :Anti-Glare
  • Color arrangement: RGB-stripe
  •  Interface:  Digital
  • View direction(Gray Inversion):  6 O’Clock
  • Panel Power consumption:  0.223 W(Typ.)
    •       了解更多产品信息请咨询：0755-86155099
    • Parameter
    • ContactUs

    1.  LCD size 5.0 inch(Diagonal)
    2. Driver element :a-Si TFT active matrix
    3.  Resolution: 800×3(RGB)×480
    4. Display mode:Normally White,Transmissiv
    5. Dot pitch: 0.045(W) ×0.135(H) mm
    6. Active area: 108.0(W)×64.8(H) mm
    7.  Panel size: 115.6(W)×74.38(H)×1.43(D) mm
    8. Surface treatment :Anti-Glare
    9. Color arrangement: RGB-stripe
    10.  Interface:  Digital
    11. View direction(Gray Inversion):  6 O’Clock
    12. Panel Power consumption:  0.223 W(Typ.)
